Product Infomation

For expansion, up to two 1.5U high EM200 expansion modules can be added to a G430, with two expansion slots each, providing a potential total of seven Media Module slots. The first Media Module slot can also host an S8300 Server to provide integrated IP Telephony for standalone businesses or mission-critical survivability for branch office-deployed G430s.

Features:

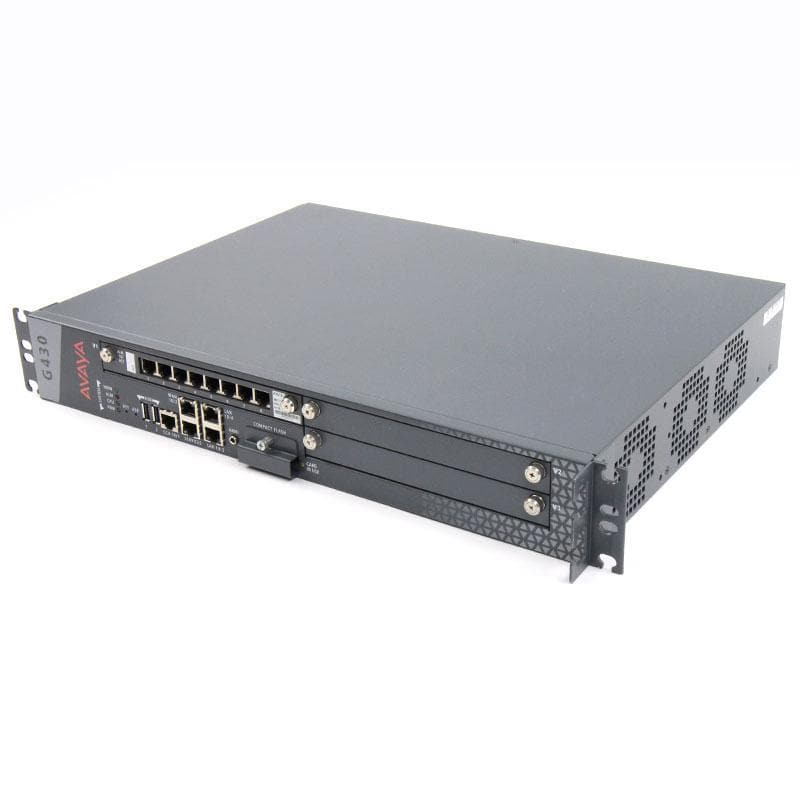

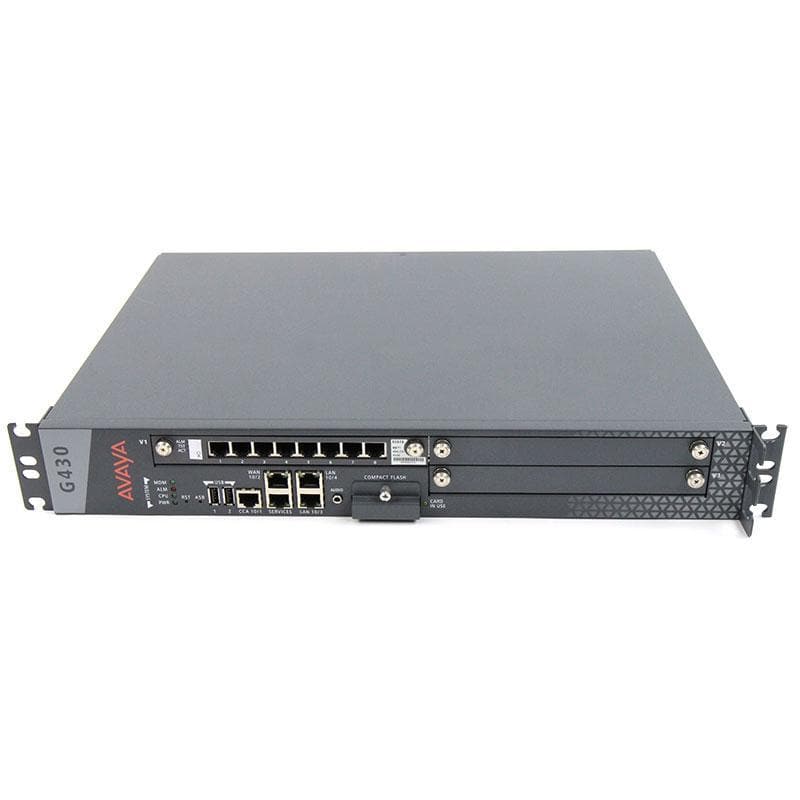

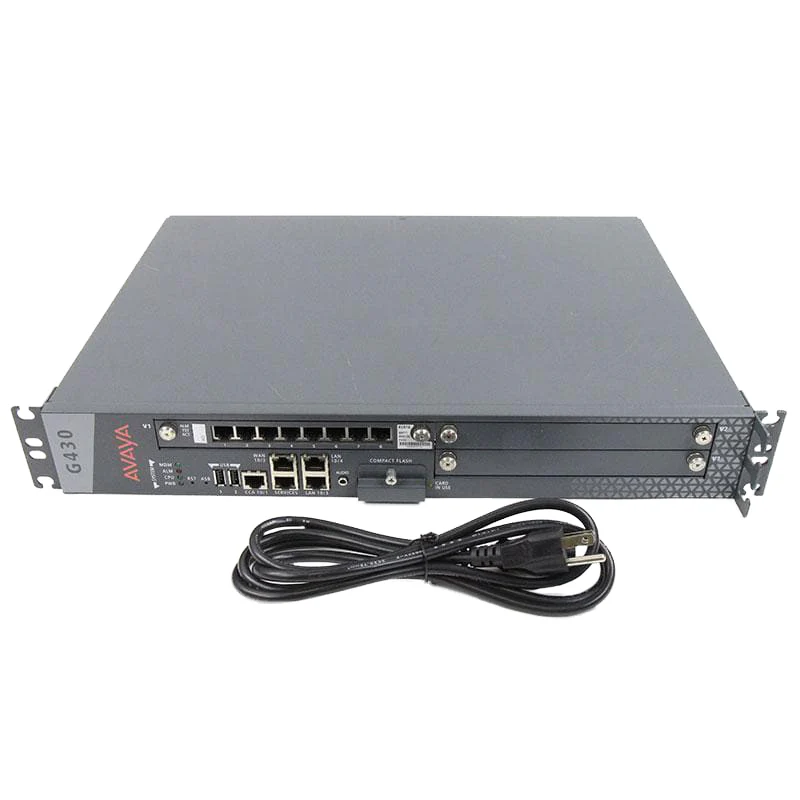

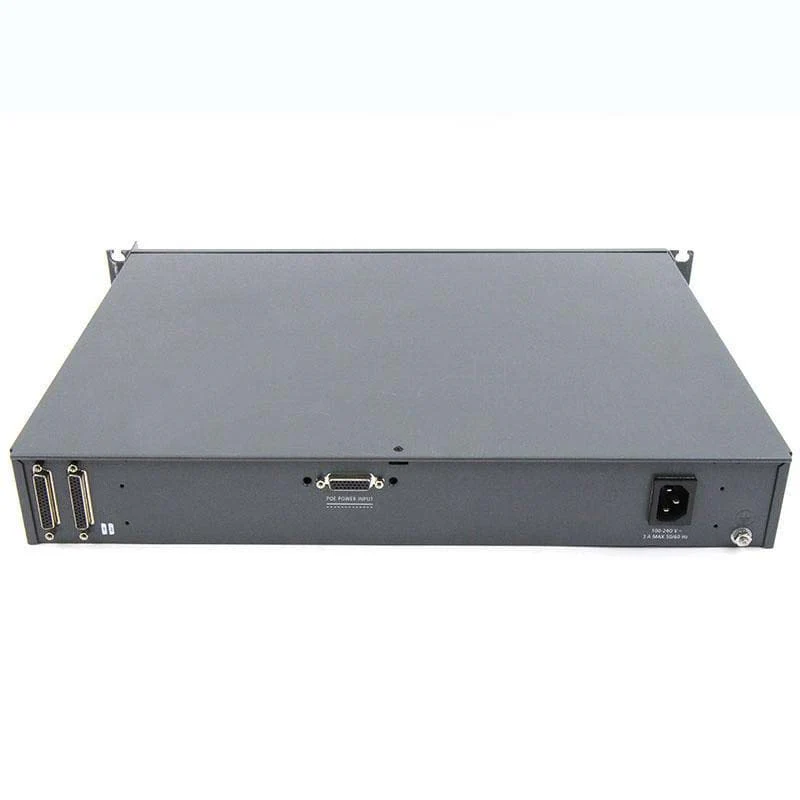

• G430 Media Gateway with MP20 Processor Card
• Busy Hour Call Completions: 2400
• Touch Tone Receivers: 32
• Announcement Port: 15 Playback; 1 Record
• Announcement and MOH Storage: 45 Minutes/ 4 hours with a memory upgrade kit
• Maximum DCP/Analog endpoints: 152
• Maximum IP Telephones with S8300 Server: 1000
• Maximum BRI Telephones: 112
• Maximum BRI Trunks: 56
• Maximum PSTN Trunks: 96 T1 and 96 E1 (limited by DSP resources)
• Maximum G430s per External Avaya Server: 250
• Maximum G430s per S8300 Server: 50
• Includes Atlas 1-Year Warranty with Extended Warranty options available!
