KES 9,889
Available

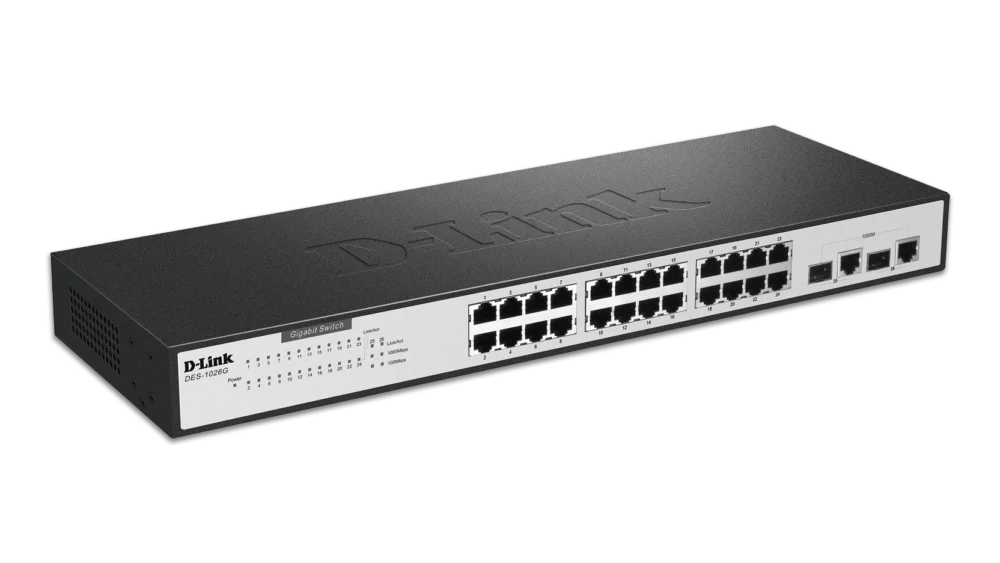

The DES-1026G is an unmanaged 10/100 Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. It provides 24 10/100Mbps ports for workstation connection, plus 2 copper/SFP Gigabit ports for server deployment, allowing a workgroup to multiply bandwidth, boost response time, and satisfy heavy load demands.
Increased Productivity
The DES-1026G comes with 24 10/100 Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex, letting you focus on work-day productivity rather than connectivity issues.
Instantly Upgrade to Gigabit Speeds 2 Copper/SFP Gigabit ports provide an alternative solution to fiber-optic or copper twisted-pair wires as the transmission media, allowing you to instantly upgrade your servers to Gigabit capability without requiring installation of new, expensive fiber cables. Both ports support 10/100/1000 Mbps network speed auto-sensing and full/half-duplex auto-negotiation, keeping you up to date with the latest technologies in switch connectivity. Additionally, all ports support flow control, which minimizes dropped packets by sending out collision signals when the port’s receiving buffer is full, ensuring reliable connectivity.
Plug and Play
All ports support auto-negotiation of MDI/MDIX cross over, which eliminates the need for cross over cables or uplink ports. Any port can simply plug to a workstation, a server, a hub or a switch using the usual straight-throughtwisted-pair cable, saving you time and money. With 26 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to workstations and servers in fullduplex, or hubs in half-duplex.
General features
Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3z 1000BASE-X(fiber-optic)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
Number of Ports
• 24 10/100 Mbps ports
• 2 10/100/1000Mbps
Data Transfer Rates
• Ethernet• 10Mbps (half-duplex)
• 20Mbps (full-duplex
• Fast Ethernet
• 100Mbps (half-duplex)
• 200Mbps (full-duplex)
Gigabit Ethernet:
• 2000Mbps (full duplex)
Swithing Fabric
• Non-blocking
• 8.8 Gbps
Network Cables
• 10BASE-T:
- UTP CAT 3/4/5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max)
• 100BASE-TX
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max)
• 1000BASE-X(fiber-optic)
- Single-mode and multi-mode fiber
Media Interface Exchange
• Auto MDI/MDI-X for each port
Transmission Method
• Store-and-forward
MAC Address Table
• 8K entries per device
MAC Address Learning
• Automatic update
Packet Filtering /Forwarding Rates
• 10BASE-T: 14,880 pps per port (half-duplex)
• 100BASE-TX: 148,810 pps per port (half-duplex)
• Gigabit Ethernet: 1,488,100 pps per port
RAM Buffer
• 512K Bytes
Topology
• Star
Status/Diagnostic LEDs
• Per device:
- Power
• Per port:
- Link/Activity
- 100Mbps speed (10/100Mbps ports)
- 100Mbps, 1000Mbps speeds (10/100/1000 Mbps
