• 13th Gen Intel® Core™ i3-13100, 4C (4P + 0E) / 8T, P-core 3.4 / 4.5GHz, 12MB
• 13th Gen Intel® Core™ i5-13400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.6GHz, E-core 1.8 / 3.3GHz, 20MB
• 13th Gen Intel® Core™ i7-13700, 16C (8P + 8E) / 24T, Max Turbo up to 5.2GHz, P-core 2.1 / 5.1GHz, E-core 1.5 / 4.1GHz, 30MB

• 14th Gen Intel® Core™ i3-14100, 4C (4P + 0E) / 8T, P-core 3.5 / 4.7GHz, 12MB
• 14th Gen Intel® Core™ i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
• 14th Gen Intel® Core™ i5-14500, 14C (6P + 8E) / 20T, P-core 2.6 / 5.0GHz, E-core 1.9 / 3.7GHz, 24MB

Windows 11 Pro 64

Integrated Intel® UHD Graphics

Up to 2x 16GB UDIMM

*Two DDR5 UDIMM slots, dual-channel capable.

• DDR5-4800

• DDR5-5600

Up to 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0

• High Definition (HD) Audio, Realtek® ALC623-CG codec

• Single speaker, 1 x 2W

Optional: DVD-ROM, SATA 1.5Gb/s, slim (9.0mm)

Optional: 3-in-1 card reader (SD, SDHC, SDXC)

Intel B760 chipset

Tower (13.6L)

145 x 294 x 340  mm

*The system dimensions may vary by configuration.

Around 5.6 kg

*The system weight may vary by configuration.

Luna Grey (front bezel), Raven Black (chassis)

• 1 x 3.5" disk bay

• 1 x slim ODD bay
• Optional: 1 x 2.5" disk bay

• One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)

• Two M.2 slots (one for WLAN, one for SSD)
• One PCIe® 3.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm

Optional: 1 x rear system fan

• 180W 85%, Fixed

• 260W 90%, Fixed

• Lenovo® Traditional Keyboard (USB connector), Black

• Lenovo® Calliope Keyboard (USB connector), Black

Lenovo® Calliope Mouse (USB connector), Black

Gigabit Ethernet, Realtek® RTL8111K, 1x RJ-45, supports Wake-on-LAN

• No WLAN and Bluetooth

• Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 Card

None

• Discrete TPM 2.0, TCG certified

• Optional: Smart Cable Clip
• Kensington® Security Slot
• Padlock Loop
• Optional: Chassis intrusion switch
• Administrator password, Power-on password, Hard disk password
• Individual USB port disablement
• Smart USB protection (allows keyboard / mouse only, blocks all storage devices)

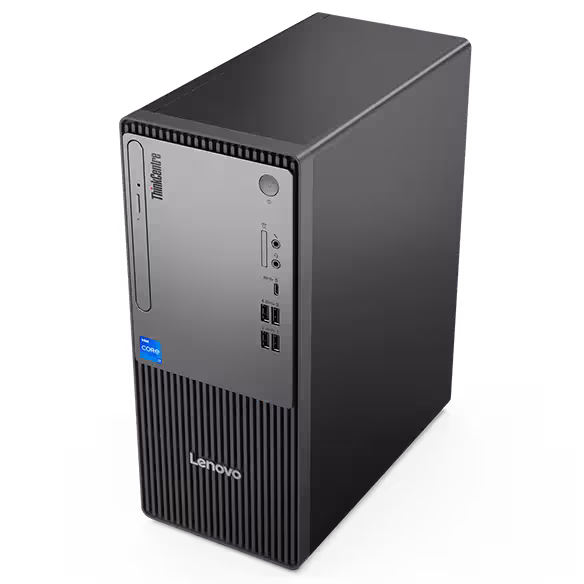

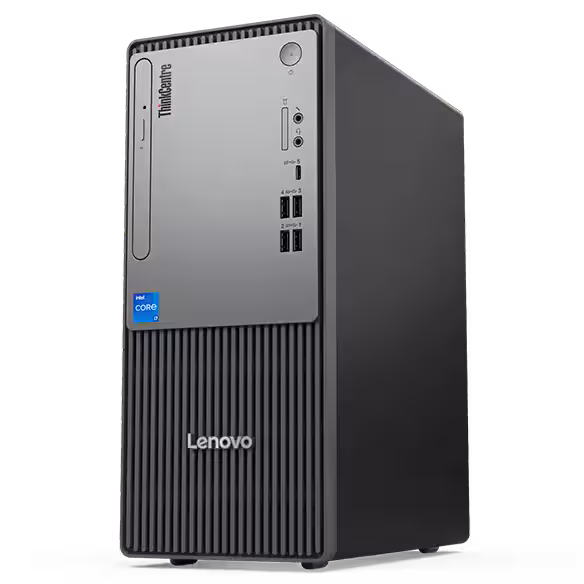

Front ports:

• 4 x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1 x headphone / mic combo jack (3.5mm)
• 1 x microphone (3.5mm)
• 1 x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging

Rear ports:

• 4 x USB-A (Hi-Speed USB / USB 2.0)
• 1 x HDMI® 2.1 TMDS
• 1 x DisplayPort™ 1.4 (HBR2)
• 1 x VGA
• 1 x Ethernet (RJ-45)
• 1 x line-out (3.5mm)

Optional rear ports:

• 1 x parallel
• 2 x serial
• 2 x PS/2

*Depending on many factors, such as the processing speed of the host device, file attributes and other factors    related to system configuration and your operating environment, will be slower than theoretical speed.

Full platform specifications
