Light Source: DLP Lamp
-
Display Resolution: WXGA (1280x800)
-
Display Resolution: 1280 x 800
-
Brightness (Lumens): 3,800 ANSI
-
Screen Size: 30 - 300 in. / 0.76 - 7.62 m
-

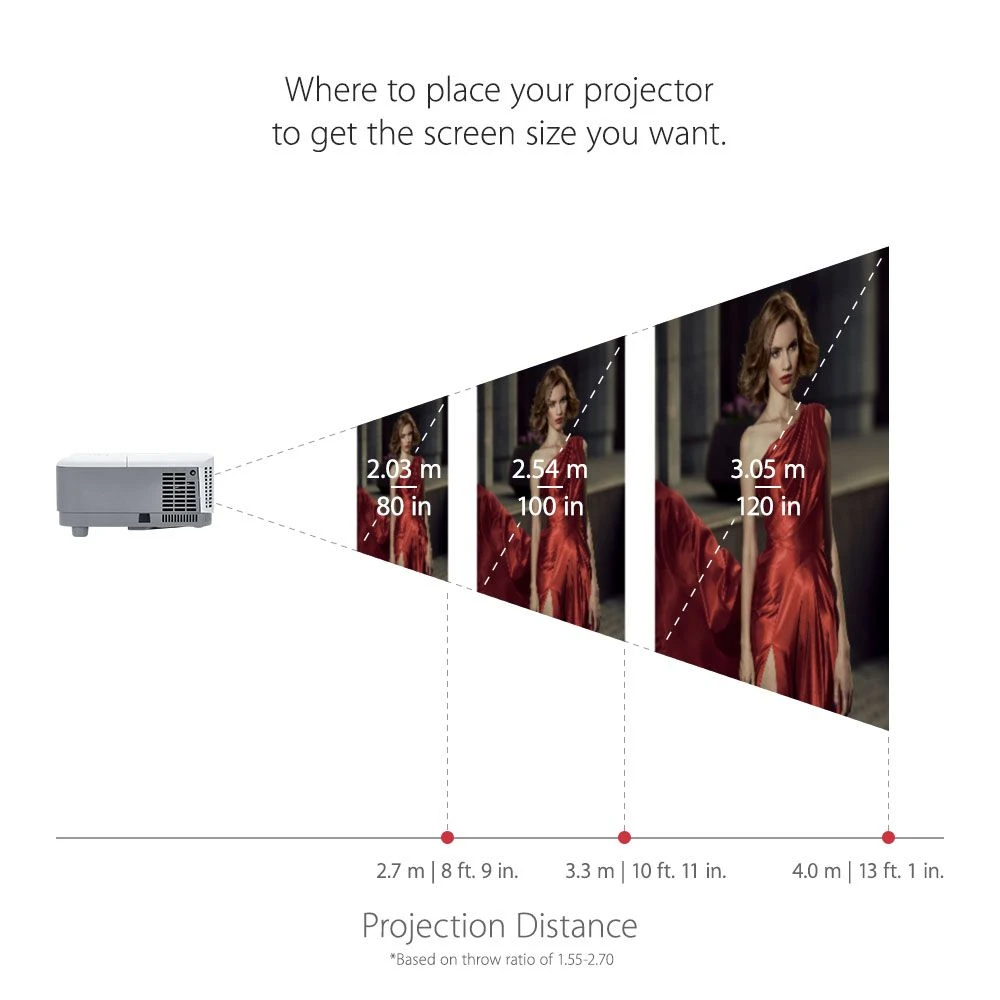

Throw Distance: 3.28 - 36.02 ft / .99 - 10.98 m
-
Throw Ratio: 1.55~1.70
-
Keystone: Vertical (+/- 40°)
-
Lens: 1.1x optical zoom
-
Light Source (watt): 200
-
Light Source Life, Normal (hours): 5000
-
Light Source Life, Dynamic Eco-Mode (hours): 15000
-
Color Depth: 30 bits, 1.07B Color (10+10+10)
-
Dynamic Contrast Ratio: 22,000:1
-
Aspect Ratio: 16:10
-
Input Lag: 37ms
-
Frequency Horizontal: 15K~102KHz
-
Frequency Vertical: 23~120MHz
-
PC Resolution (max): VGA(640 x 480) to FullHD(1920 x 1080)
-
Mac® Resolution (max): VGA(640 x 480) to FullHD(1920 x 1080)
-

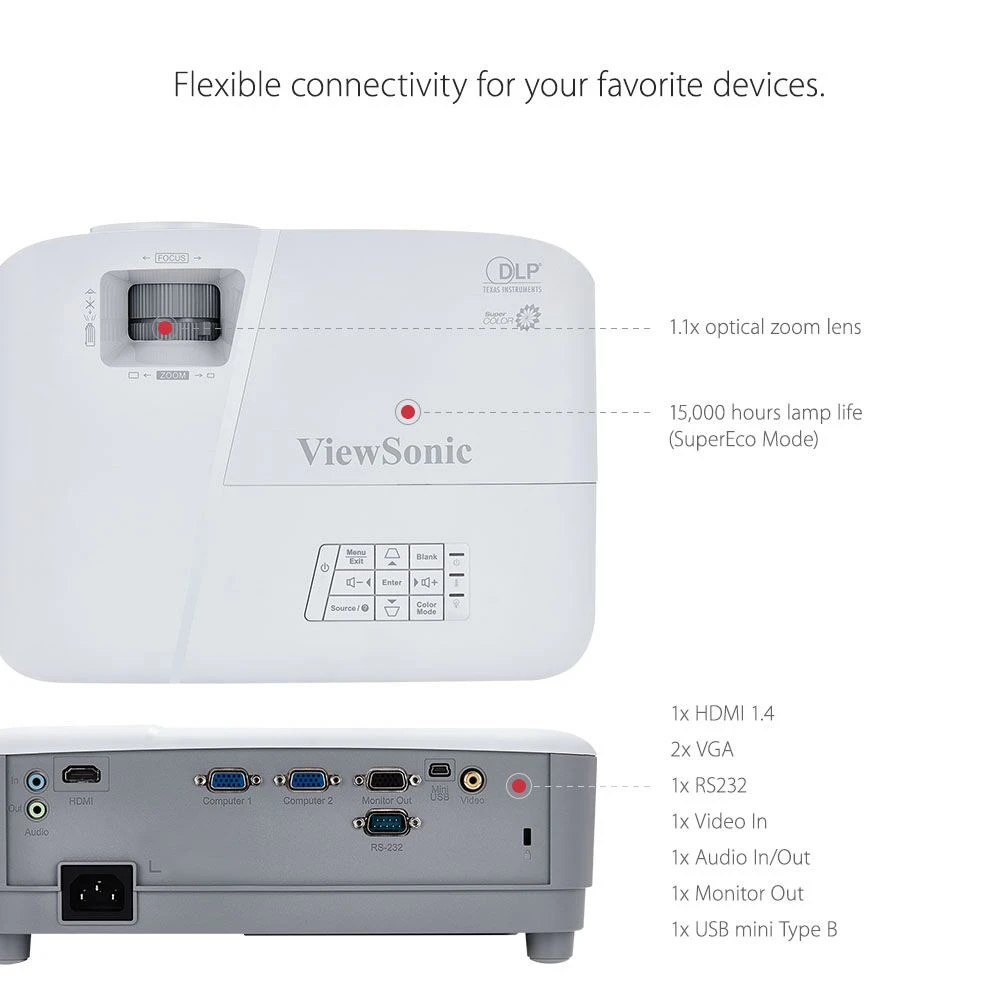

3.5mm Audio Out: 1
-
3.5mm Audio In: 1
-
Control (RS232): 1
-
HDMI In: 1
-
VGA In: 2
-
VGA Out: 1
-
Composite RCA Video In: 1
-
Mini USB: 1
-
Internal Speakers: 2W (x1)
-
Voltage: 100-240V+/- 10%, 50/60Hz AC
-
Consumption (typical): 260W
-
Stand-by: <0.5W
-
Temperature: 32-104º F (0 - 40º C)
-
Net (lbs): 4.9
-
Gross (lbs): 7.1
-
Net (kg): 2.2
-
Gross (kg): 3.2
-
Packaging (in.): 14.4 x 7.4 x 11.8
-

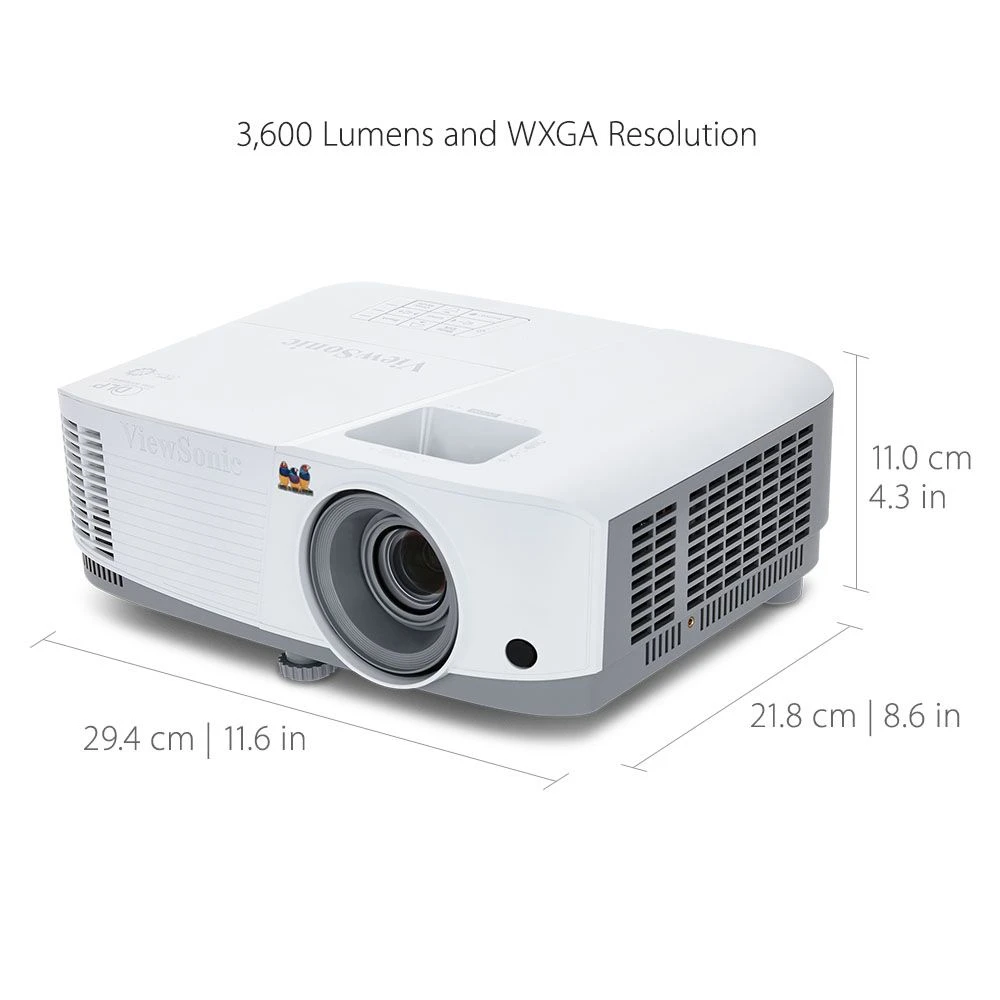

Physical (in.): 11.6 x 4.3 x 8.6
-
Packaging (mm): 365 x 188 x 300
-
Physical (mm): 294 x 110 x 218
-
Regulations: FCC (including ICES003), cTUVus, NOM, TUV-Rheinland S Mark
-

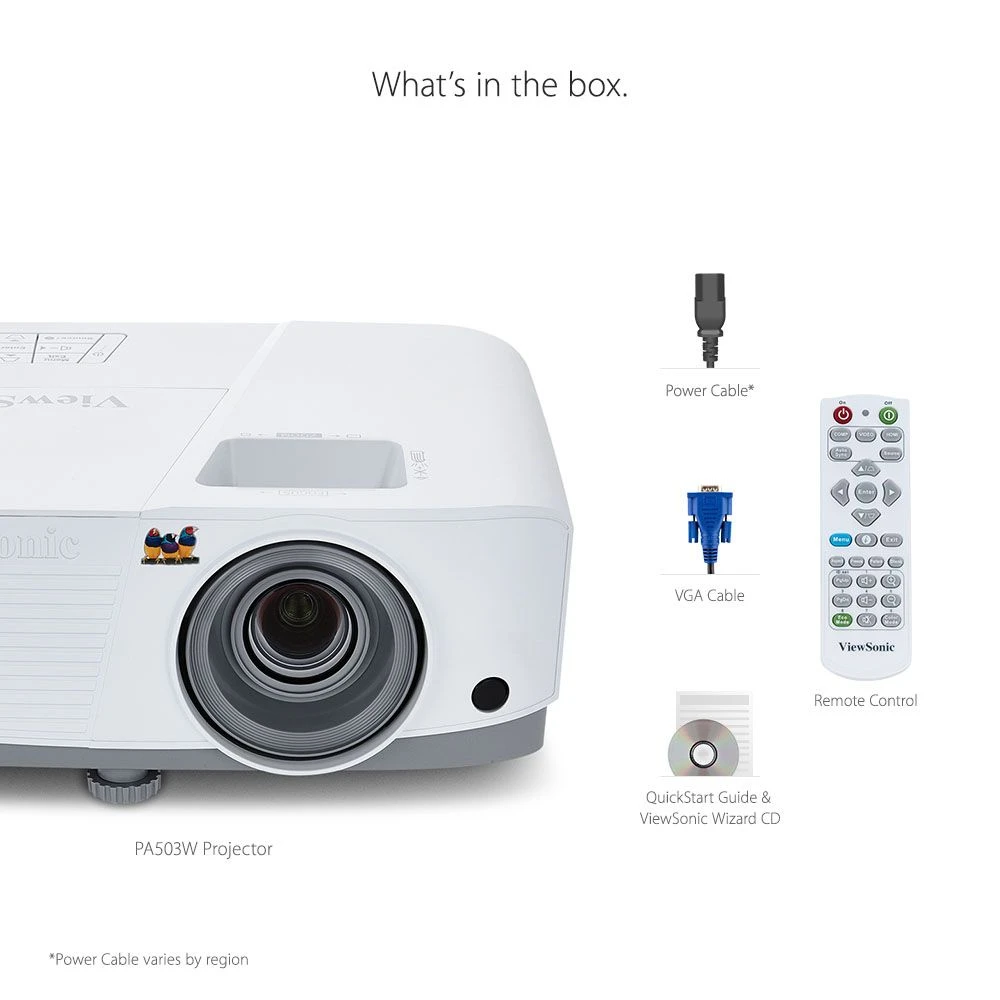

Package Contents: PA503W projector, power cable, VGA cable, laser remote control with batteries, Quick Start Guide
-
Warranty: Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
-
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
